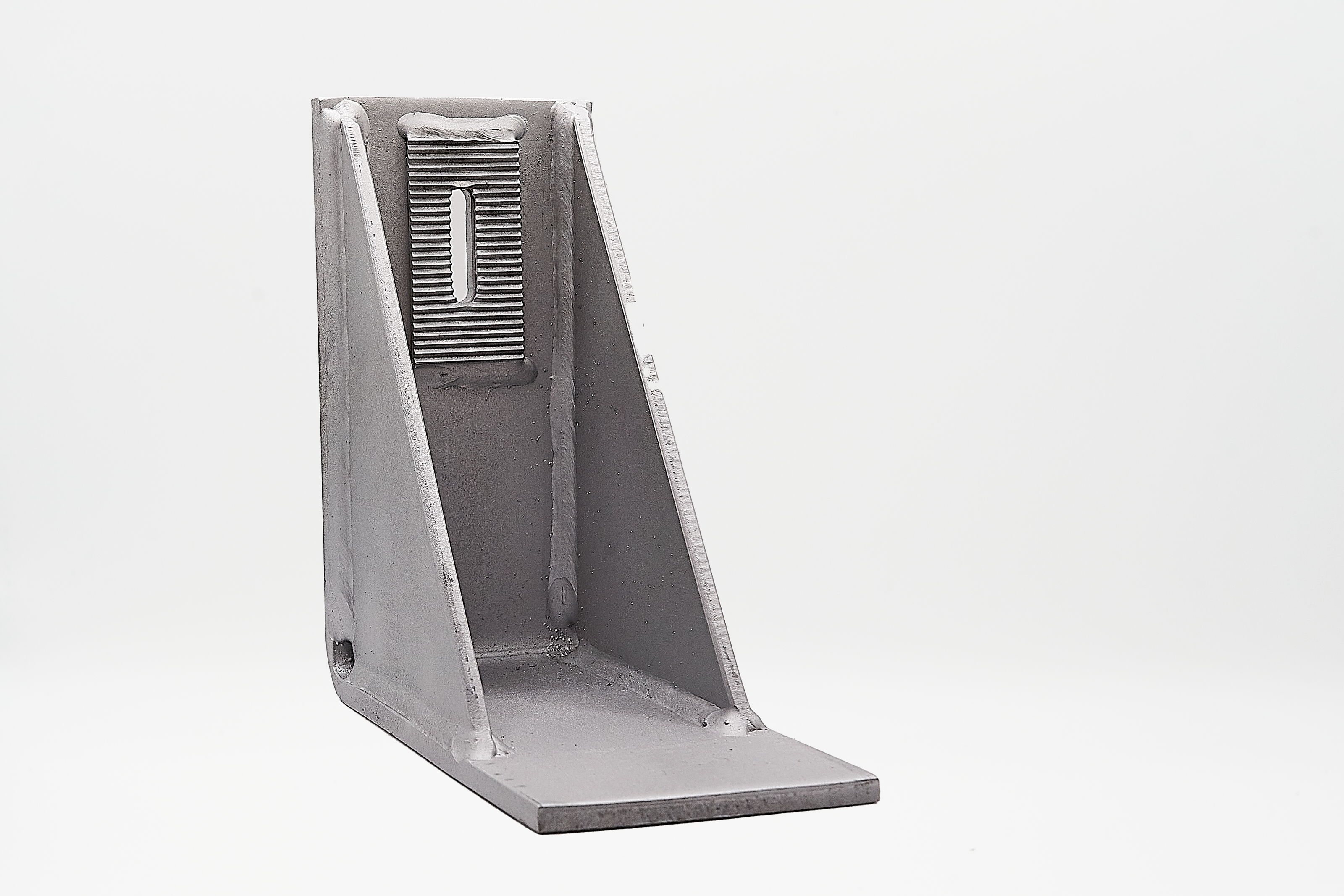

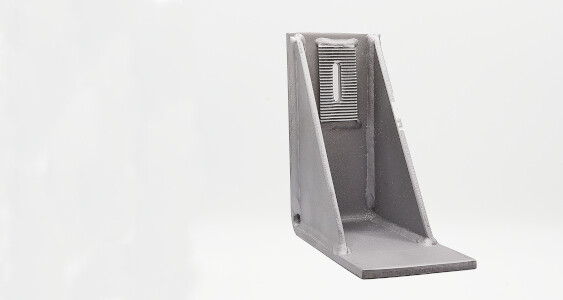

LB3-SG: Support Bracket

A right-angle support bracket with one vertical slot with a welded serrated patch, to allow for on-site vertical adjustment, and two welded stiffeners to the upstand and projection leg. Dowels can also be added to the projection leg. Fixed back to the primary structure.

Quotation for

LB3 SG:SupportBracket

A right angle support bracket with one vertical slot with a welded serrated patch, to allow for on site vertical adjustment, and two welded stiffeners to the upstand and projection leg. Dowels can also be added to the projection leg. Fixed back to the primary structure. Fabricated to your own specification, submit this form for a quotation now.

Product Sheet

Download

Product

All units are in mm

Height *

Length *

Thickness (A) *

Projection *

B *

Stiffener Thickness (C) *

Z *

Slot(D) Length *

Slot(D) width *

Specification

All units are in mm

Quantity required *

Product material *

Finish *

Your Details

Your name *

Your email address *

Contact number

Business Name

Prefer not to be challenged?
Enable Google's invisible reCAPTCHA in your cookie settings

Features and Benefits

Manufactured and supplied with minimal lead-in time.
EN 1090 Execution Class 2 compliant
Reduces tolerance issues by allowing for vertical adjustment during installation.
Stiffened projection legs limits deflection and overall weight, resulting in economical and efficient solution
