LB4-SG: Support Bracket

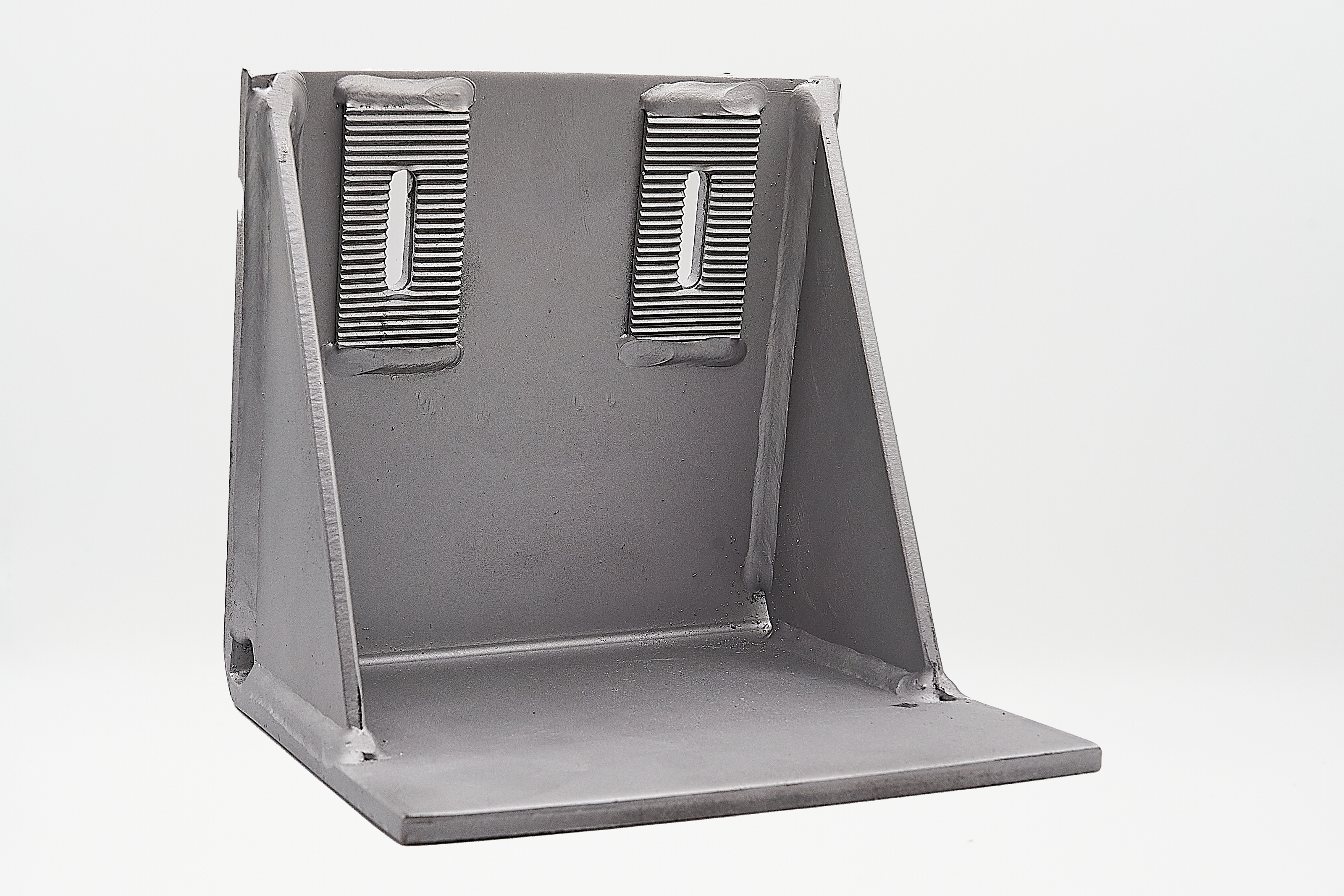

A right-angle support bracket with two vertical slots with welded serrated patches, to allow for on-site vertical adjustment, and two welded stiffeners to the upstand and projection leg.

Quotation for

LB4 SG:SupportBracket

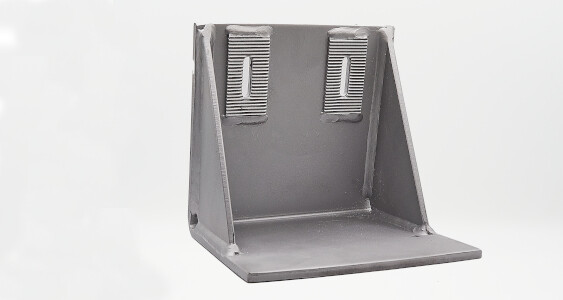

A right angle support bracket with two vertical slots with welded serrated patches, to allow for on site vertical adjustment, and two welded stiffeners to the upstand and projection leg. Dowels can also be added to the projection leg. Fixed back to the primary structure. Fabricated to your own specification, submit this form for a quotation now.

Product Sheet

Download

Product

All units are in mm

Height *

Length *

Thickness (A) *

Projection *

B *

Stiffener Thickness (C) *

X *

Z *

Slot length (D) *

Slot width *

Specification

All units are in mm

Quantity required *

Product material *

Finish *

Your Details

Your name *

Your email address *

Contact number

Business Name

Prefer not to be challenged?
Enable Google's invisible reCAPTCHA in your cookie settings

Features and Benefits

Quick-fit design for rapid on-site installation
Manufactured and supplied with minimal lead-in time.
Stiffened projection legs limits deflection and overall weight, resulting in economical and efficient solution
EN 1090 Execution Class 2 compliant
